VoltAlert Family

Fluke rugged. Fluke reliable. Fluke precise.

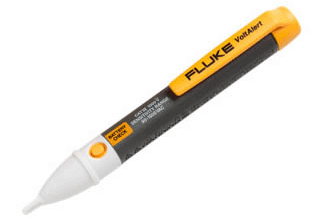

VoltAlert™ AC non-contact voltage testers from Fluke are easy to use — just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red, you know there’s voltage present.


Fluke now offers three models of non-contact voltage detectors. With three uniquely designed models, Fluke is sure to have the right voltage detector for you.


Complete more tests each day with the Fluke 6500-2 PAT Tester
Complete more tests each day with the Fluke 6500-2 PAT Tester
Fluke 6500-2 PAT Tester and included accessories
One button testing on the Fluke 6500-2 PAT Tester lets you complete more tests each day
Fluke 6200-2 PAT Tester; compact, lightweight, easy to carry
Enquire now


Features

2AC

1AC-II

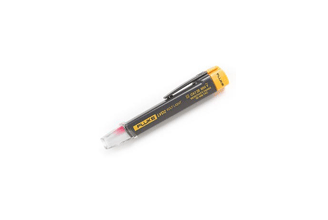

LVD2
Voltage 200 V ac to 1000 V ac 90 V ac to 1000 V ac 90 V ac to 600 V ac
CAT Rating CAT IV 1000V CAT IV 1000V CAT IV 600V
Voltage Detection
Batteries Included
Battery Check Button
On/Off Button
Voltbeat™
Audible/Silent
LED Flashlight

Specifications
Operating Principles Senses the steady state electrostatic field produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip indicates the presence of voltage.
Safety Compliance Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2
EMC Compliance Meets IEC 61326-1:2006
Operating
2AC 90 V ac to 1000 V ac, CAT IV 1000 V rated
1AC-II 90V ac to 1000 V ac, CAT IV 1000 V rated
LVD2 90 V ac to 600 V ac, CAT IV 600 V rated
Temperature
2AC -10 °C to 50 °C (-14 °F to 122 °F)
1AC-II -10 °C to 50 °C (-14 °F to 122 °F)
LVD2 0 °C to 50 °C (32 °F to 122 °F)
Humidity 0 % to 95 % (0 °C to 30 °C)
0 % to 75 % (30 °C to 40 °C)
0 % to 45 % (40 to 55 °C)
Altitude
2AC 2000 m (CAT IV 1000 V)
1AC-II 3000 m
LVD2 2000 m
Cleaning Clean with damp cloth
Battery Life
2AC Typical battery life of great than one year
1AC-II Typical battery life of greater than 1 year
LVD2 Dependent upon flashlight usage
Warranty Period Two years
